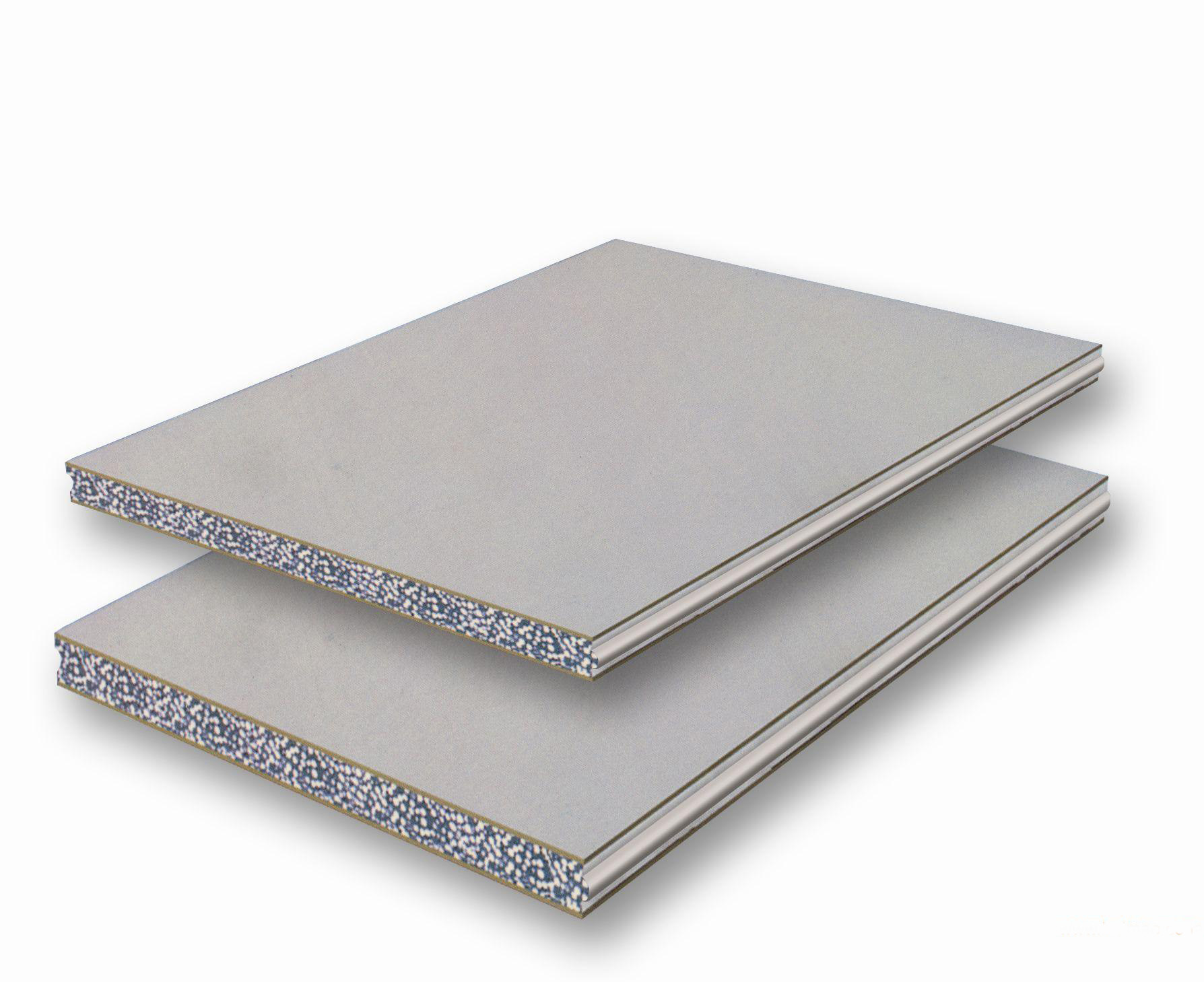

waterproof wall panelis kind of lightweight wall material made of cement, EPS,
yellow sand as core materials and forming by one time compound. It has good function
on waterproof and moistureproof, which is good for moisture sites, such as
kitchen, bathroom, basement, the wall will not have such changes like
looseness, scumming, transformation and strength degradation.
Application range
1、widely used in all kinds of old and new construction of bearing
internal and external wall;
2、apply to office
buildings, residential, schools, hospitals, hotels, KTV etc, which has higher
requirements for sound insulation;
3、suitable for internal and external wall of steel structure
construction;
4、suitable for old building which has
high strict requirment for floor slab
Construction drawing
Product features
1、 Waterproof

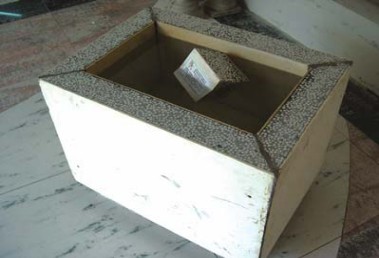

Test shows
that DQ sandwich wall panel can be made as container for water withouth any
plastering, its totally no leakage of water.
It has
good function on waterproof and moistureproof, which is good for moisture
sites, such as kitchen, bathroom, basement, the wall will not have such changes
like looseness, scumming, transformation and strength degradation.
And in wet
weather, there will be also no condensed water bead on the wall, but for the
common wall, which is not moistureproof, so the stripping will be happen as
time goes by.
2、Lightweight & Space
and Cost Saving
DQ
waterproof wall panel is a kind of solid core but thin body new wall material, which
is lightweight, and greatly reduces the building's load-bearing. The thickness of
the waterproof panel is from 90-180mm, which will save a lot of space when
compared with the traditional bricks.
For
example, if plastering the traditional bricks, the general thickness will be
240mm+40mm, but if DQ panel, the 90mm thickness will be enough for partition
wall, and still meets the national testing standards.
3、 Easy Construction & Shorter Time
DQ waterproof wall panel use fabricated
way to install, which is easy and effective for installation and no
construction waste, no need to plaster and shorter the time for construction.
The traditional bricks need 12 workers
to work 60mins, but for same project, if use DQ wall panel, it just needs 3
workers to work an hour, which will save a lot of labor cost for the
construction part.
4、High intensity & Quake Proof &High
safety performance
DQ waterproof wall panel use fabricated
way to install, which has strong intensity as a whole, and the seismic
performance is much higher than that of the traditional walls dozens of times,
and also some times higher than it regarding the anti-impacting.
Under the impact force of 50 kilograms, no
slightest transfixion crack, no deformation and no surface loose marks, DQ
lightweight partition panel can be directly nailing or bolts for hanging heavy
objects, such as fire hydrant, lampblack machine, water heater, etc.
Technical Index
|
No.
|
Items
|
National
Standard
|
Testing
Result
|
|
60mm
|
90mm
|
120mm
|
60mm
|
90mm
|
120mm
|
|
1
|
Anti-impact
Capacity/times
|
≥5
|
≥5
|
≥5
|
≥8
|
≥10
|
≥15
|
|
2
|
Anti-bending
damage load/times over dead weight
|
≥1.5
|
≥1.5
|
≥1.5
|
≥3
|
≥4
|
≥5
|
|
3
|
Compressive
Strength /Mpa
|
≥3.5
|
≥3.5
|
≥3.5
|
≥5
|
≥5
|
≥5
|
|
4
|
Softening
Coefficient
|
≥0.80
|
≥0.80
|
≥0.80
|
≥1
|
≥1
|
≥1
|
|
5
|
Surface
Density/Kg/㎡
|
≤70
|
≤90
|
≤110
|
≤55
|
≤70
|
≤85
|
|
6
|
Moisture
Rate a/%
|
≤12/10/8
|
≤10/9/7
|
|
7
|
Drying
Shrinkage Value /mm/m
|
≤0.6
|
≤0.6
|
≤0.6
|
≤0.45
|
≤.0.5
|
≤0.06
|
|
8
|
Single Point
Hanging
Strength /N
|
≥1000
|
≥1000
|
≥1000
|
≥1200
|
≥1300
|
≥1500
|
|
9
|
Sound
Insulation Capacity in the air /Db
|
≥30
|
≥35
|
≥40
|
≥35
|
≥40
|
≥45
|
|
10
|
Fire Proof
Limit /h
|
≥1
|
≥1
|
≥1
|
≥2.5
|
≥3
|
≥4
|
|
11
|
Heat
Transfer Coefficient b/w/m2
|
|
|
≤2.0
|
|
|
≤2.0
|
