Daquan

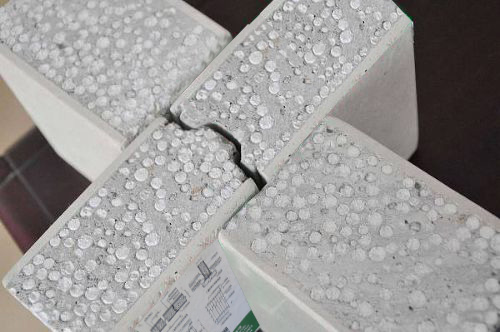

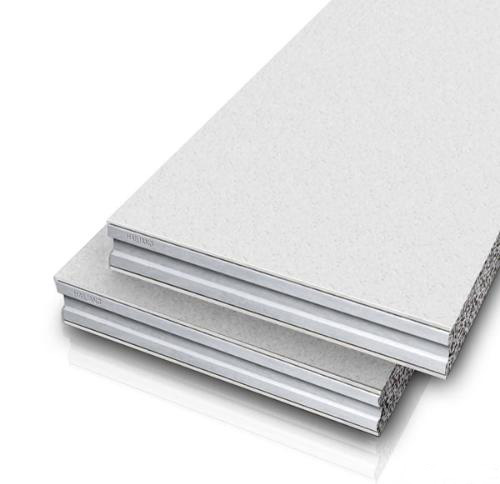

fireproof wall panel is kind of light weight energy saving wall material taking
reinforced calcium silicate board as face panel ,with cement ,eps and fly ash
as core material and forming by one time compound .Good fireproof performance,
fire and smoke gas can be confined to the fire area, and not sending out
poisonous gases, a more security for your safety.
Application range
1) Widely applied to all kind of
modern building for no-loading interior wall
partition and exterior wall .
2) Apply to office buildings,
hospitals, residential, hotels, factories, warehouses and other fireproof zone
partition wall;
3) Apply to occasion where have high requirement for
fireproof
Site construction effect
Product features
1、 Fire proof
Daquan energy saving boards have a fire
proof limit of 4hours against a high temperature of 1000℃ and incombustibility
standard achieve national level A .Besides these materials give out no toxic
gas and perfectly meet the international environmental protection criterion .
2、 lightweight ,space and
cost saving
DQ fireproof wall panel is the new type
wall with core,the raw materials for wall panel is light and can reduce the

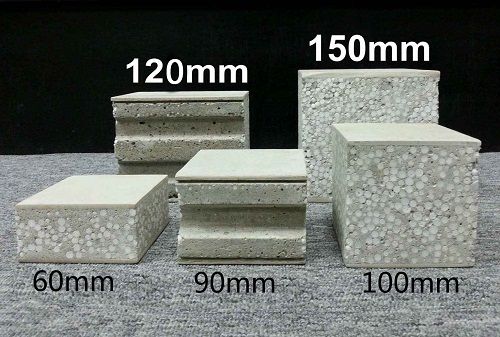

weight of building The thickness of Daquan wall panel are between 60mm to 180mm
.They can increase the building spaces compared to the traditional blocks .
3、Easy construction and
shorter time
DQ wall panel adopt assembly
construction method ,the whole assembly or construction process is simple,
effective, no construction waste, no plaster, shorten the construction period
.The construction work with traditional blocks
taking 12 people 60 minutes to complete will need only 3 people to spend
60 minutes to finish it if they use Daquan boards which can save a lot of labor
cost for construction part .
4、High strength earthquake safety performance is high
DQ
wall panel adopt assembly construction method,high intensity , the earthquake
resistance function and shock resistance function is dozens times higher than
other wall materials .Wall panel without the
slightest transfixion crack, overall no deformation, metope without loose under
the impact force of 50 kilograms .DQ fireproof wall panel can be nailed
directly or have expansion bolt to lift and hang heavy things such as fire
hydrant, distribution box etc .
Technical Index
S/N
|
ITEMS
|
National
Standards
|
Testing
Indexes
|
|
60mm
|
90mm
|
120mm
|
60mm
|
90mm
|
120mm
|
|
1
|
Anti-impact
performance
|
≥5
|
≥5
|
≥5
|
≥8
|
≥10
|
≥15
|
|
2
|
Anti-bending
damage load/Times over deadweight
|
≥1.5
|
≥1.5
|
≥1.5
|
≥3
|
≥4
|
≥5
|
|
3
|
Anti-pressure strength/Mpa
|
≥3.5
|
≥3.5
|
≥3.5
|
≥5
|
≥5
|
≥5
|
|
4
|
Soften
coefficient
|
≥0.80
|
≥0.80
|
≥0.80
|
≥1
|
≥1
|
≥1
|
|
5
|
Surface
density /Kg/㎡
|
≤70
|
≤90
|
≤110
|
≤55
|
≤70
|
≤85
|
|
6
|
Moisture
rate a/%
|
≤12/10/8
|
≤10/9/7
|
|
7
|
Drying
shrinkage value mm/m
|
≤0.6
|
≤0.6
|
≤0.6
|
≤0.45
|
≤.0.5
|
≤0.06
|
|
8
|
Single Point
hanging strength/N
|
≥1000
|
≥1000
|
≥1000
|
≥1200
|
≥1300
|
≥1500
|
|
9
|
Sound
Insulation Capacity in the air/Db
|
≥30
|
≥35
|
≥40
|
≥35
|
≥40
|
≥45
|
|
10
|
Fireproof
Limit/h
|
≥1
|
≥1
|
≥1
|
≥2.5
|
≥3
|
≥4
|
|
11
|
Heat
transfer coefficient b/w/㎡.k
|
|
|
≤2.0
|
|
|
≤2.0
|
