DQ eps cement solid panel is by
cement,eps and fly ash compounded.This product is economic and practical, low
cost, widely used in various types of building exterior and interior walls.
Application range
1) Widely used in various types of old and
new non-load-bearing interrior or exterior partion wall
2) Applicable to industrial building fire
walls and internal and external non-load-bearing walls
3) Apply to the steel structure building's
internal and external walls

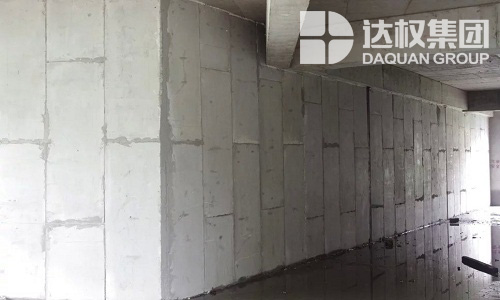

Construction drawing
Product features
1、 Energy
Saving,green eco-friendly
DQ eps cement solid panel uses the environmental protection
material with freeze-resistant and heat-preservation. It has good heat
insulation and heat preservation function. It can automatically adjust the air
moisture content with the seasonal climate change, meet the development Trend
of Modern Ecological Residential Buildings.
2、Waterproof,fireproof
DQ eps cement solid panel have a fire proof limit of 4 hours
against a high temperature of 1000℃and incombustibility standard achieve
national level A , and the material does not emit any toxic gases, fully
compound the international environmental standards.
DQ eps cement solid panel can be made as container to fill water
without plastering , no slightest leakage.
3、 Sound
insulation and absorptions
DQ eps cement solid panel has a good sound insulation and
sound-absorbing features, DQ 90mm thick plate has a sound insulation volume of
45dB, the traditional block has a sound insulation volume of 20dB.
4、Light
weight,space saving,coast saving
DQ light weight partition board is a solid core of the new wall
materials, lightweight materials, greatly reducing the load-bearing
construction. Its thickness between
60mm-180mm, compared with the traditional block thickness greatly saves the
building space. For example: the traditional block to increase the average
thickness of 240 mm +40 mm, while use 90mm thick DQ light weight wall board as
interior wall can meet all needs and meet the national standards for testing.
5、Easy construction and shorter time
DQ eps cement solid panel construction for the assembly of
construction, the entire assembly or construction process is simple, efficient,
non-construction waste, without touching ash, shorten the duration. Traditional
block wall requires 12 people 60 minutes of construction ,DQ light weight
partition board only takes 3 people 60 minutes to complete, save a lot of labor
costs for construction.
6、 High strength earthquake safety performance is high
DQ eps cement solid panel take
prefabricated construction, the overall high strength, the seismic performance
is higher than the masonry wall several times, the impact resistance is several
times the other masonry, in 50kg impact force, no The slightest through the
crack, the overall deformation, strong surface without loose traces; up to the
right light partition board can be directly nailed or on the expansion bolt
hook hanging heavy objects, such as air conditioners
Product technical indicators
Interior wall dedicated technical indicators
|
S/N
|
Iterms
|
National
Standards
|
Testing
Indexes
|
|
60mm
|
90mm
|
120mm
|
60mm
|
90mm
|
120mm
|
|
1
|
Anti-impact
performance
|
≥5
|
≥5
|
≥5
|
≥8
|
≥10
|
≥15
|
|
2
|
Anti-bending
damage load/Times over dead weight
|
≥1.5
|
≥1.5
|
≥1.5
|
≥3
|
≥4
|
≥5
|
|
3
|
Anti-pressure
strength
|
≥3.5
|
≥3.5
|
≥3.5
|
≥5
|
≥5
|
≥5
|
|
4
|
Soften
coefficient
|
≥0.80
|
≥0.80
|
≥0.80
|
≥1
|
≥1
|
≥1
|
|
5
|
Surface
density
|
≤70
|
≤90
|
≤110
|
≤55
|
≤70
|
≤85
|
|
6
|
Moisture
rate
|
≤12/10/8
|
≤10/9/7
|
|
7
|
Drying
shrinkage value
|
≤0.6
|
≤0.6
|
≤0.6
|
≤0.45
|
≤.0.5
|
≤0.06
|
|
8
|
Single point
hanging strength
|
≥1000
|
≥1000
|
≥1000
|
≥1200
|
≥1300
|
≥1500
|
|
9
|
Sound
insulation capacity in the air
|
≥30
|
≥35
|
≥40
|
≥35
|
≥40
|
≥45
|
|
10
|
Fireproof
limit
|
≥1
|
≥1
|
≥1
|
≥2.5
|
≥3
|
≥4
|
|
11
|
Heat
transfer coefficient
|
|
|
≤2.0
|
|
|
≤2.0
|
Exterior wall dedicated technical indicators
|
S/N
|
Items
|
National
standards
|
Testing
indexes
|
|
120mm
|
150mm
|
180mm
|
120mm
|
150mm
|
180mm
|
|
1
|
Anti-impact
performance
|
≥5
|
≥5
|
≥5
|
≥15
|
≥20
|
≥5
|
|
2
|
Anti-bending
damage load/Times over dead weight
|
≥15
|
≥15
|
≥15
|
≥7
|
≥7
|
≥15
|
|
3
|
Anti-pressure
strength
|
≥5.5
|
≥5.5
|
≥5.5
|
≥5.5
|
≥5.5
|
≥5.5
|
|
4
|
Surface
density
|
≥2
|
≥2
|
≥2
|
≥2
|
≥2
|
≥2
|
|
5
|
Drying
shrinkage value
|
≤85
|
≤100
|
≤100
|
≤85
|
≤100
|
≤100
|
|
6
|
Moisture
rate
|
≤12/10/8
|
≤12/10/8
|
|
7
|
Drying
shrinkage value
|
≤0.4
|
≤.0.4
|
≤.0.4
|
≤0.4
|
≤.0.4
|
≤.0.4
|
|
8
|
Single point
hanging strength
|
≥1500
|
≥1800
|
≥1800
|
≥1500
|
≥1800
|
≥1800
|
|
9
|
Sound
insulation capacity in the air
|
≥45
|
≥50
|
≥50
|
≥45
|
≥50
|
≥50
|
|
10
|
Fireproof
limit
|
≥2.5
|
≥3
|
≥3
|
≥2.5
|
≥3
|
≥3
|
|
11
|
Heat
transfer coefficient
|
|
≤1
|
≤1
|
|
≤1
|
≤1
|
