DQ hollow core wall panel

Eps & cement hollow panel is a kind of lightweight energy saving hollow wall material,which compound cement ,eps and sand by one time .This product is widely applied to all kind of modern building for interior wall partition ,exterior wall and heat preservation for the floor and roof with special and feature of light weight and cost saving .

Panel Specifications:

 Length: 1500mm

Width: 600mm
Thickness: 90,120,150,180mm

Weight35-55kg/m2

Soundproof 36-50db

 Fireproof  A grade




Eps & cement hollow panel is a kind of lightweight energy saving hollow wall material,which compound cement ,eps and sand by one time .This product is widely applied to all kind of modern building for interior wall partition ,exterior wall and heat preservation for the floor and roof with special and feature of light weight and cost saving .







Application Range


1) Widely applied to all kind of modern building for no-loading interior wall partition and exterior wall .

2)Used as the  exterior&interior partition wall,which have slab loading bearing requirement in the old building renovation projects.

3)Applied to floor and roof insulation

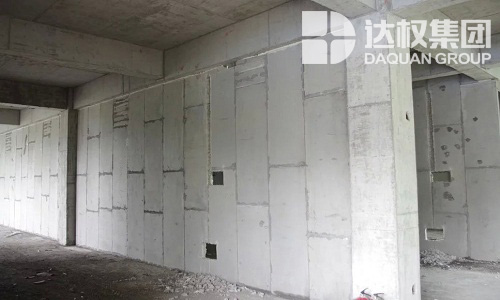

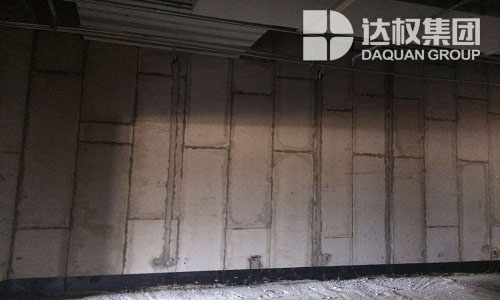

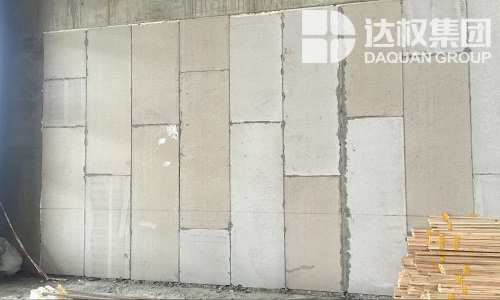

Site construction effect










Product features



1 Energy saving, green environmental protection

DQ hollow core wall panel adopt anti-freezing and heat preserving environmental protection materials with good heat insulation and preservation function ,which could adjust the indoor temperature at a constant range ,thus achieving the effects of ecological adjustment ,Keeping pace with the development of modern ecological residential building.

2Water proof ,fire proof

DQ hollow core wall panel’s incombustibility standard achieve national level A .Besides  these raw materials give out no toxic gas and perfectly meet the international environmental protection .

The tests also prove that water containers can be made by using Daquan solid wall panel with no need for plastering and the containers have no leakage at all .

3 Sound insulation and absorption

DQ solid wall panel has good sound insulation and sound-absorbing  functions .

4 lightweight ,space saving ,cost saving

DQ hollow core wall panel is the new type wall with core,the raw materials for wall panel is light and can reduce the weight of building .The thickness of Daquan  hollow core wall panel are between 90mm to 180mm .They can increase the building spaces compared to the traditional blocks.

5 Easy construction and shorter time

DQ wall panel adopt assembly construction method ,the whole assembly or construction process is simple, effective, no construction waste, no plaster, shorten the construction period .The construction work with traditional blocks  taking 12 people 60 minutes to complete will need only 3 people to spend 60 minutes to finish it if they use Daquan boards which can save a lot of labor cost for construction part.





Product technical indicators




S/N

 Items

National standards

Testing Indexes

90mm

120mm

90mm

120mm

1

Anti-impact performance

≥5

≥5

5

5

2

Anti-bending damage load/Times over dead weight

≥1.5

≥1.5

2

2

3

Anti-pressure strength

≥3.5

≥3.5

3.5

3.5

4

Soften coefficient

≥0.80

≥0.80

0.8

0.8

5

Surface density

≤90

≤110

≤50

≤60

6

Moisture rate

≤8-12

8

7

Drying shrinkage value

≤0.6

≤0.6

0.6

0.6

8

Single point hanging strength

≥1000

≥1000

1000

1000

9

Sound insulation capacity in the air

≥35

≥40

35

40

10

Fireproof limit

≥1

≥1

3

3




Application Case
